GP Series Chain Non-Sealed 415 / 420 / 428 / 520

The GP Series chains offer a lightweight racing chain that is designed for the toughest conditions in professional motocross racing. Chain sizes available: 415, 420, 428 and 520.

GP series
  • Specially designed for motocross use
  • Low weight professional racing chain
  • CRK pin coating: All pins are hard chromed which significantly increases lifespan in wet and muddy conditions.
  • Bushes and rollers are produced using special cold forming technology which eliminates any material deformation.
  • Gold (Brass) outer plate plating maximises corrosion resistance.
  • Precision pre-shaped bushings ensure a perfect fit between bushings and pins which minimises chain stretch.
  • All components are made out of high quality German steel.
  • Recommended for 2 & 4 stroke race bikes up to 450cc and 70hp.
  • Available in gold.
  • GP520 118 links –  GP428 134 links – GP420 134 links – GP415 134 links.
  • Replacement master links available.

Chromed Pins – Durability.

All pins are hard chromed which significantly increases lifespan in wet and muddy conditions.

SPECS

gp-chain_all

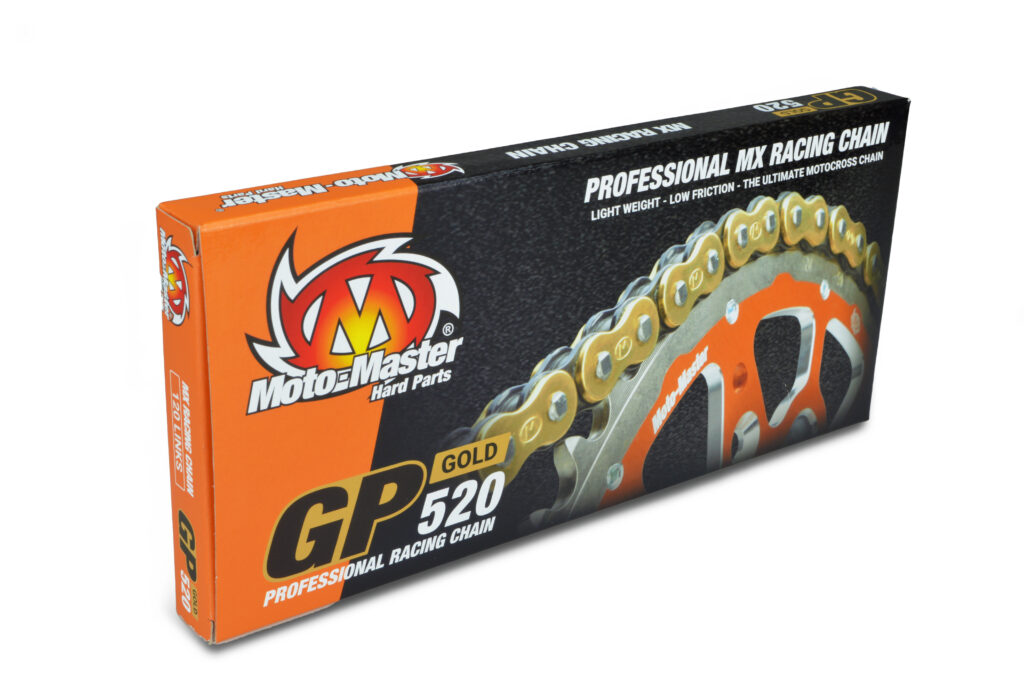

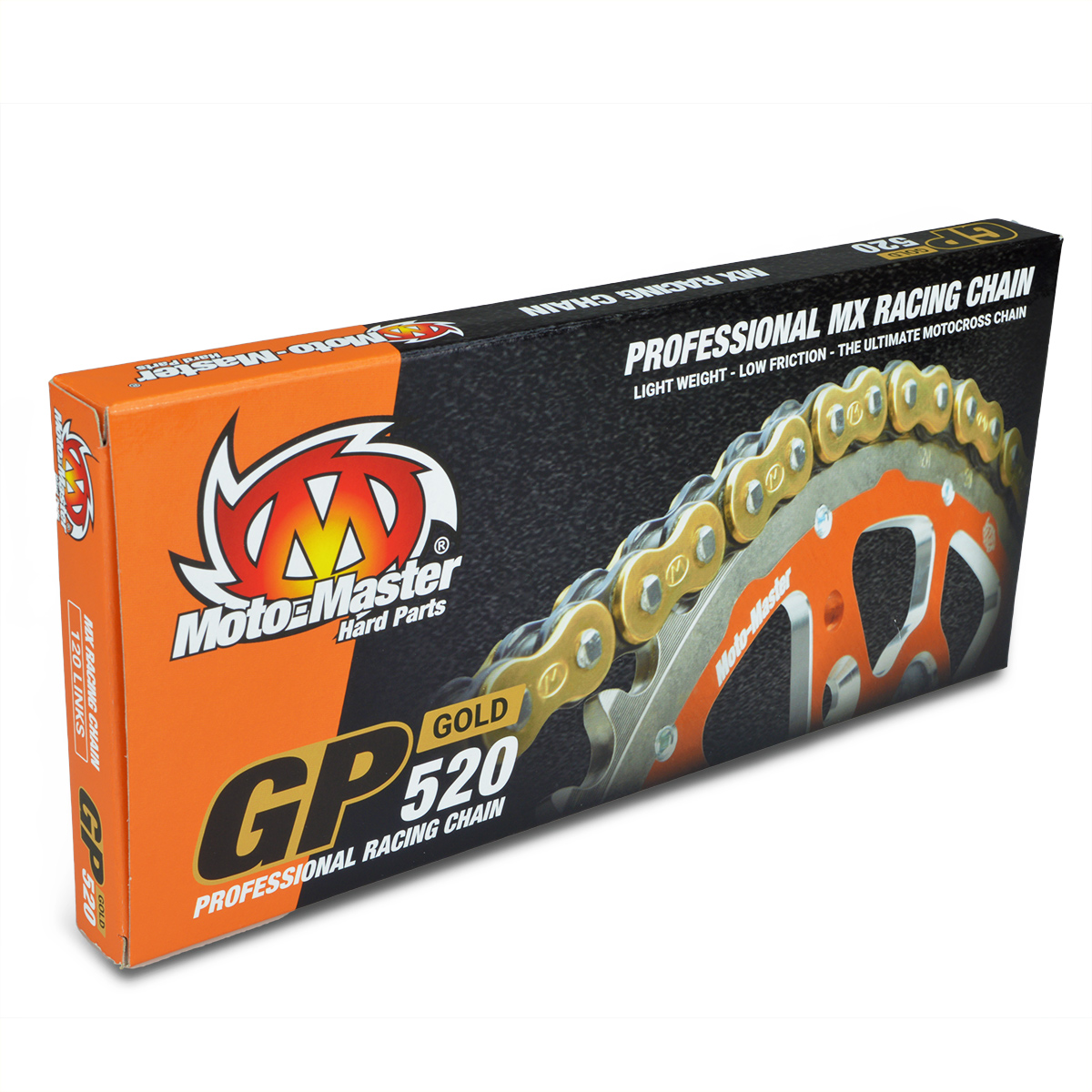

GP 520 - TECHNICAL SPECIFICATIONS

  • Average tensile strength: 39kN
  • Weight (approx): 1.9 kg – 118 links

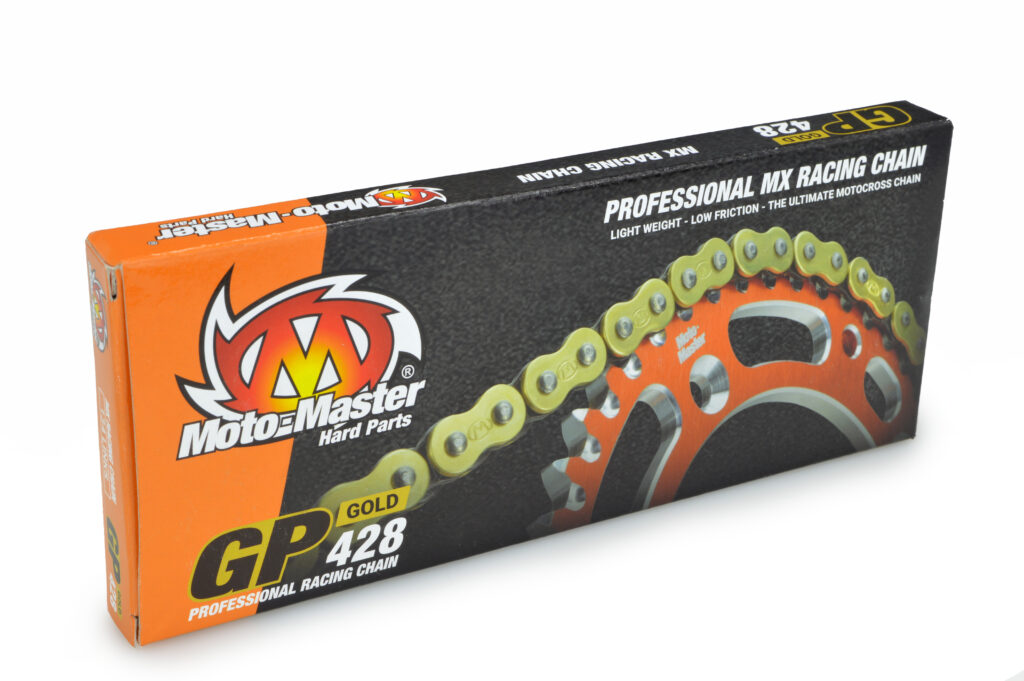

GP 428 - TECHNICAL SPECIFICATIONS

  • Average tensile strength: 23kN
  • Weight (approx): 1.348 kg – 134 links

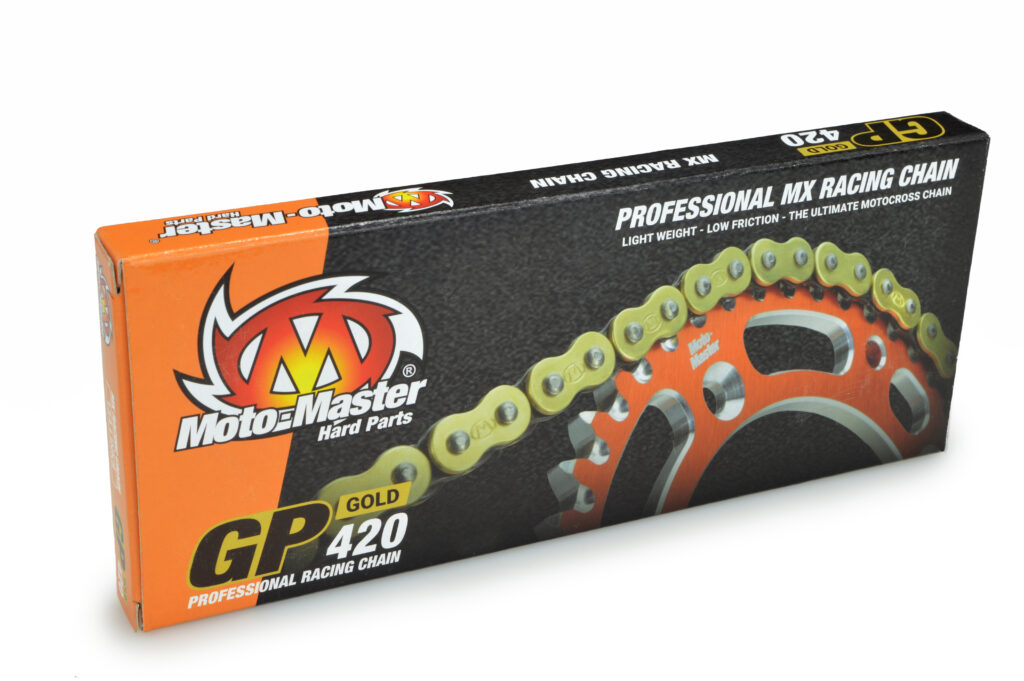

GP 420 - TECHNICAL SPECIFICATIONS

  • Average tensile strength: 22kN
  • Weight (approx): 1.184 kg – 134 links

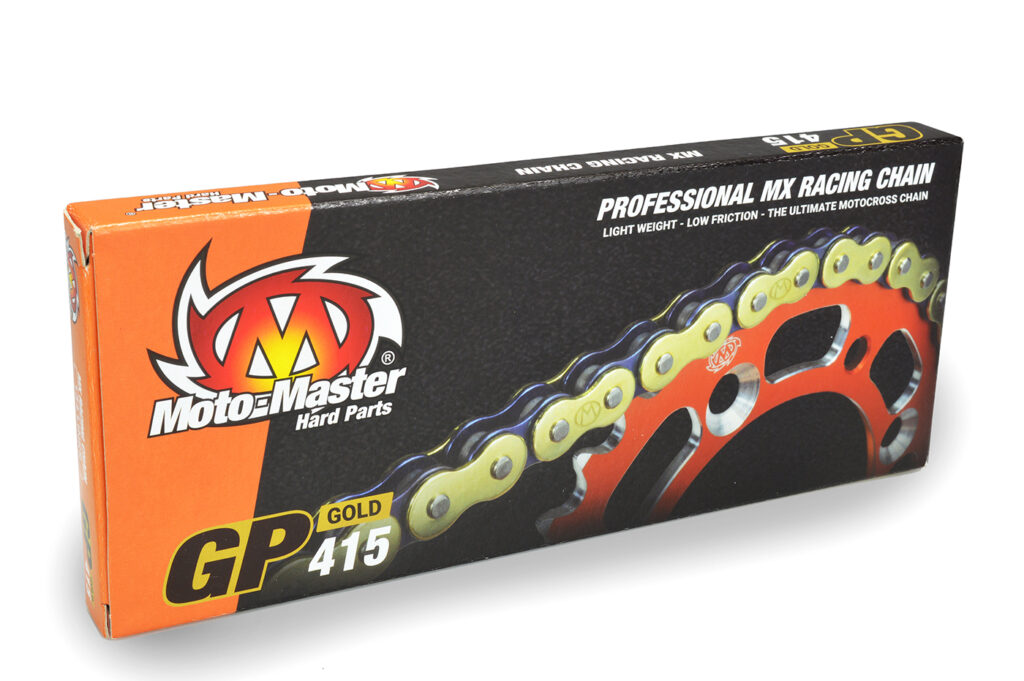

GP 415 - TECHNICAL SPECIFICATIONS

  • Average tensile strength: 19.1kN
  • Weight (approx): 0.950 kg – 134 links
sprocket-gp520-website

TOP QUALITY

All components are made out of high quality German steel and the Gold (Brass) outer plate plating maximises corrosion resistance.
